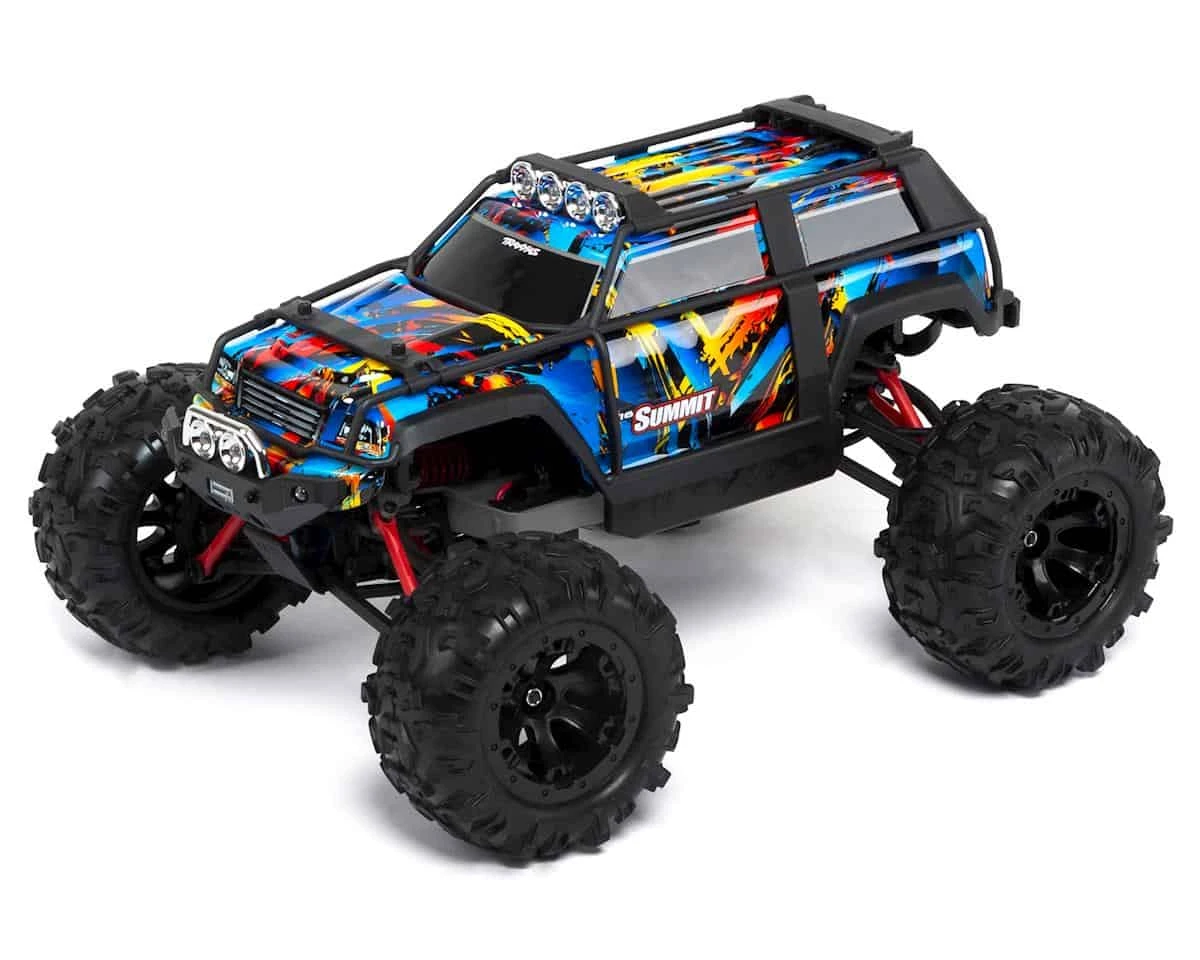

Traxxas Summit: 1/16-Scale 4WD Electric Extreme Terrain Monster Truck Rock and Roll

Description



The Traxxas 1/16 Summit is now available in a Rock n’ Roll paint scheme! Combine that with Titan 12T power and you have power to match the attitude for go-anywhere off-road fun. Featuring factory-installed bright LED lights in the front and rear bumpers in addition to the roof mounted LED light bar in the Exo-Cage, the 1/16 Summit is ready to light up the night.



Enjoy Big Summit Fun in a More Convenient 1/16 Scale Size!

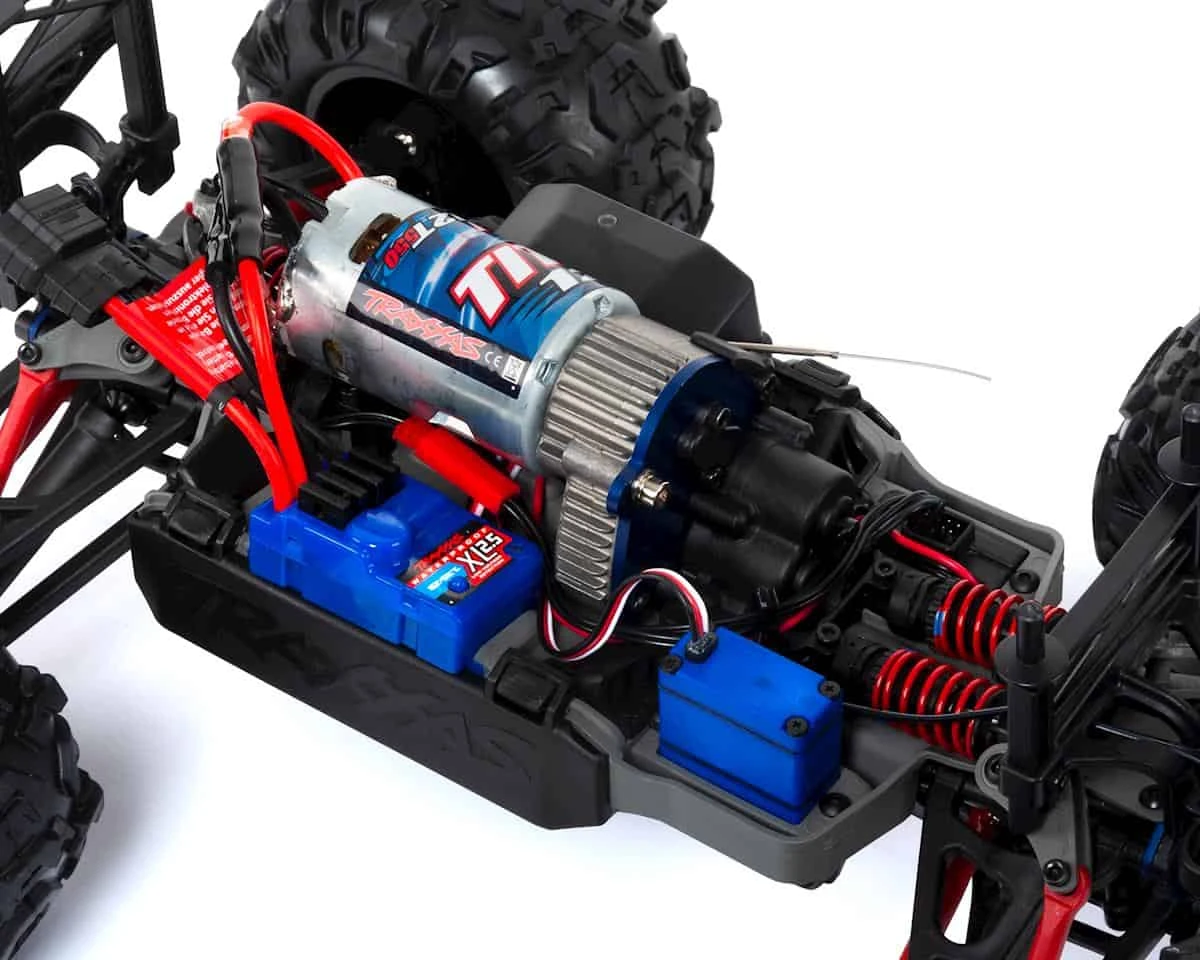

Leave it to Traxxas to stuff a 1/10 scale motor into a 1/16 scale truck! Summit’s mighty Titan 12T 550 motor delivers nearly limitless torque for tire-scorching acceleration and all-terrain capability. With massive suspension travel and 4-wheel drive traction, Summit tackles impossible terrain. Traxxas engineers combined all the big Summit’s go-anywhere versatility with waterproof electronics to make even your wildest adventures possible. Summit’s bright LED lights blaze a trail, making night runs more exciting than ever. The 1/16 Summit’s just-right size lets you enjoy hours of off-road fun anytime, anywhere!



Features:

• 6-cell NiMH Power Cell Battery with iD
• Ready-To-Race® with Included Power Cell™ NiMH Battery and AC Wall-Outlet Charger
• Powerful Titan® 12T 550 Motor—Largest in Class
• Waterproof XL-2.5 Electronic Speed Control
• TQ™ 2.4GHz Transmitter and Receiver
• Full-Time 4WD
• Bright LED Lights Front and Rear to Illuminate the Trail
• Waterproof Electronics for all-Weather Adventures
• Torque-Control™ Adjustable Slipper Clutch
• Sealed Differentials
• Realistic all-Terrain Tires with Foam Inserts



Specifications:
Length: 12.6″ (320mm)
Front Track: 10.43″ (265mm)
Rear Track: 10.63″ (270mm)
Weight: 46.4oz (1.31kg)
Height (Overall): 7.48″ (190mm)
Wheelbase: 8.425″ (214mm)
Wheel Diameter: 2.2″ (56mm)
Shock Length (Front / Rear): 48mm / 48mm
Front/Rear Tires (Glued): Canyon AT
Front/Rear Wheels: Geode™
Electronic Speed Control: Waterproof XL-2.5 ESC
Motor (Electric): Titan® 12T 550
Transmission: Heavy-Duty Single Speed
Gear Ratio (Internal): 5.04:1, (Reversed Input: 9.72:1)
Overall Drive Ratio: 15.75:1 (stock)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank
Radio System: Traxxas TQ™ 2.4GHz (2-Channel)
Included Charger: AC Wall-Outlet Charger
Included Batteries: 6-cell NiMH with iD Connector
Required Batteries:



Needed to Complete:

• 4 “AA” Batteries for Transmitter
