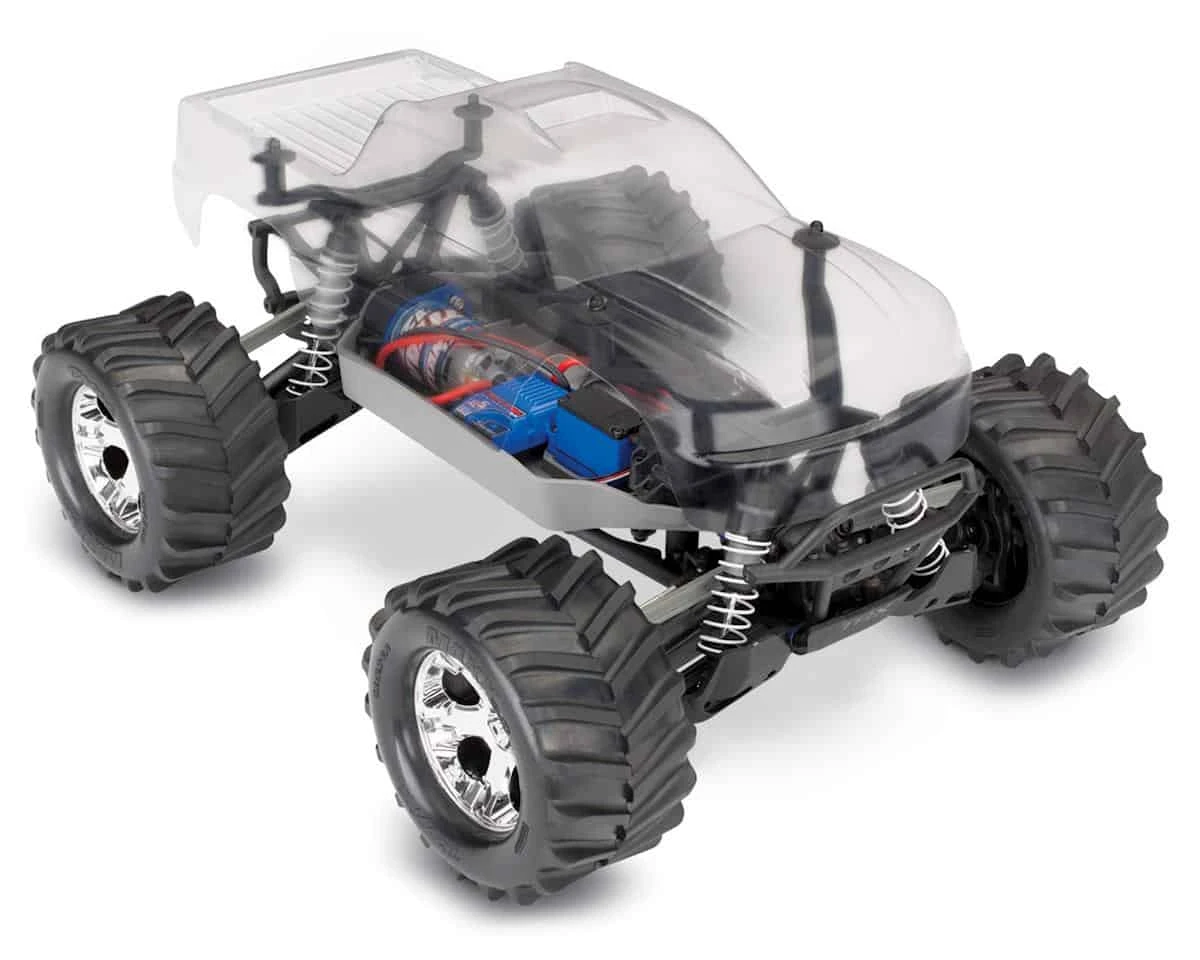

Traxxas Stampede 4X4 Unassembled Kit: 1/10-scale 4WD Monster Truck





The Traxxas Stampede 4X4 1/10 4WD Monster Truck Kit is designed to handle all the 4-wheel drive monster mayhem you can dish out. Its tall ground clearance and long-arm suspension make Stampede 4X4 feel unstoppable. The Stampede 4X4 Assembly Kit combines all the mud-slinging fun of the RTR Stampede with the excitement of building your own truck.



The Stampede 4X4 Assembly Kit adds a fun and exciting dynamic to your RC experience. Build your Stampede from the ground up with all the required parts and electronics included in the box. You’ll get the convenience of a TQ 2.4GHz radio system, powerful Titan electric motor, and waterproof XL-5 electronic speed control. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Stampede 4X4 Kit is perfect for drivers of almost any age or skill level. Discover why Stampede 4X4’s off-road capability and toughness are rivaled only by its reputation for pure, no-nonsense fun.



• Stampede 4X4 unassembled kit
• Full-time 4WD, reaches speeds over 30mph! (with optional 21-tooth speed pinion gear – sold separately)
• TQ™ 2.4GHz 2-channel radio system
• Sealed, oil-filled differentials
• Waterproof electronics for all-weather driving excitement
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Speed control and receiver are securely screwed to the chassis
• Equipped with patented Traxxas High-Current Connectors
• High-torque Waterproof Traxxas steering servo (TRA2056)
• Efficient telescoping heavy-duty U-joint driveshafts
• Bellcrank steering system with integrated servo saver
• Modular simplicity, fiber-composite monocoque chassis
• Gray chassis components offer a high-contrast tech look
• Easy access battery compartment
• Drive-over-anything ground clearance and forward wheel placement
• Long-travel suspension
• Fully adjustable Ultra Shocks™ with X-ring technology
• High-quality hex hardware throughout
• Efficient rubber-sealed ball bearings
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Chrome All-Star™ 2.8″ wheels
• Chevron Maxx™ multi-terrain tires with high-performance foam inserts
• Full line of genuine Traxxas accessories available
• Unparalleled Traxxas support and parts availability



Length: 15.63 inches (397mm)

Front Track: 13.39 inches (340mm)

Rear Track: 13.39 inches (340mm)

Center Ground Clearance: 2.95  inches (75mm)

Weight: 90.46 ounces (2.57 kg) (with electronics installed)

Height (overall): 8.94 inches (227mm)

Wheelbase: 10.83 inches (275mm)

Speed Control Type: XL-5™ Electronic Speed Control

Motor (electric): Titan® 12T 500 (12-turn)

Gear Pitch: 32

Radio System: TQ™ 2.4GHz (2-channel)

Body: Pre-cut clear polycarbonate

Skill Level: 1

Battery Tray Dimensions: 142×48.5x23mm/25mm (*Battery expansion kit available – TRA6727X)

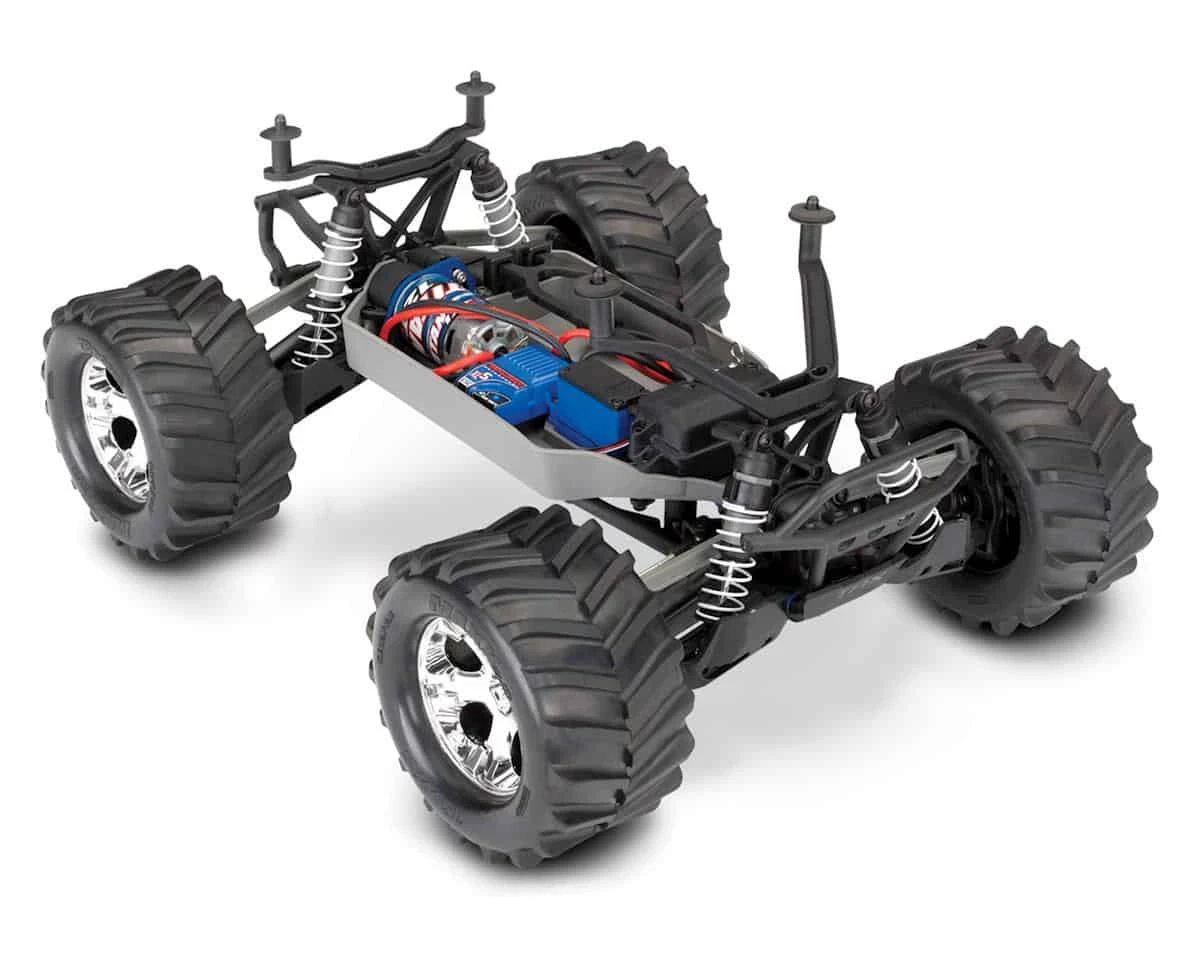

• Unassembled Stampede 4X4 chassis
• TQ™ 2.4GHz radio system
• Waterproof XL-5™ electronic speed control
• Titan® 12-Turn 550 modified motor
• Waterproof high-torque steering servo
• Sealed, steel-gear front and rear differentials
• Chevron Maxx™ 2.8″ tires, foam inserts, and chrome All-Star™ wheels
• Pre-cut clear Stampede body with decals and window masking
• Full-color step-by-step assembly manual



• 6/7 cell NiMH or 2s LiPo Battery with Traxxas High-Current Connector
• Battery charger
• Metric hex drivers – 1.5mm, 2.0mm, 2.5mm
• Basic hand tools – Screwdrivers, needle nose pliers
• CA glue
• Polycarbonate paint
• Safety glasses
