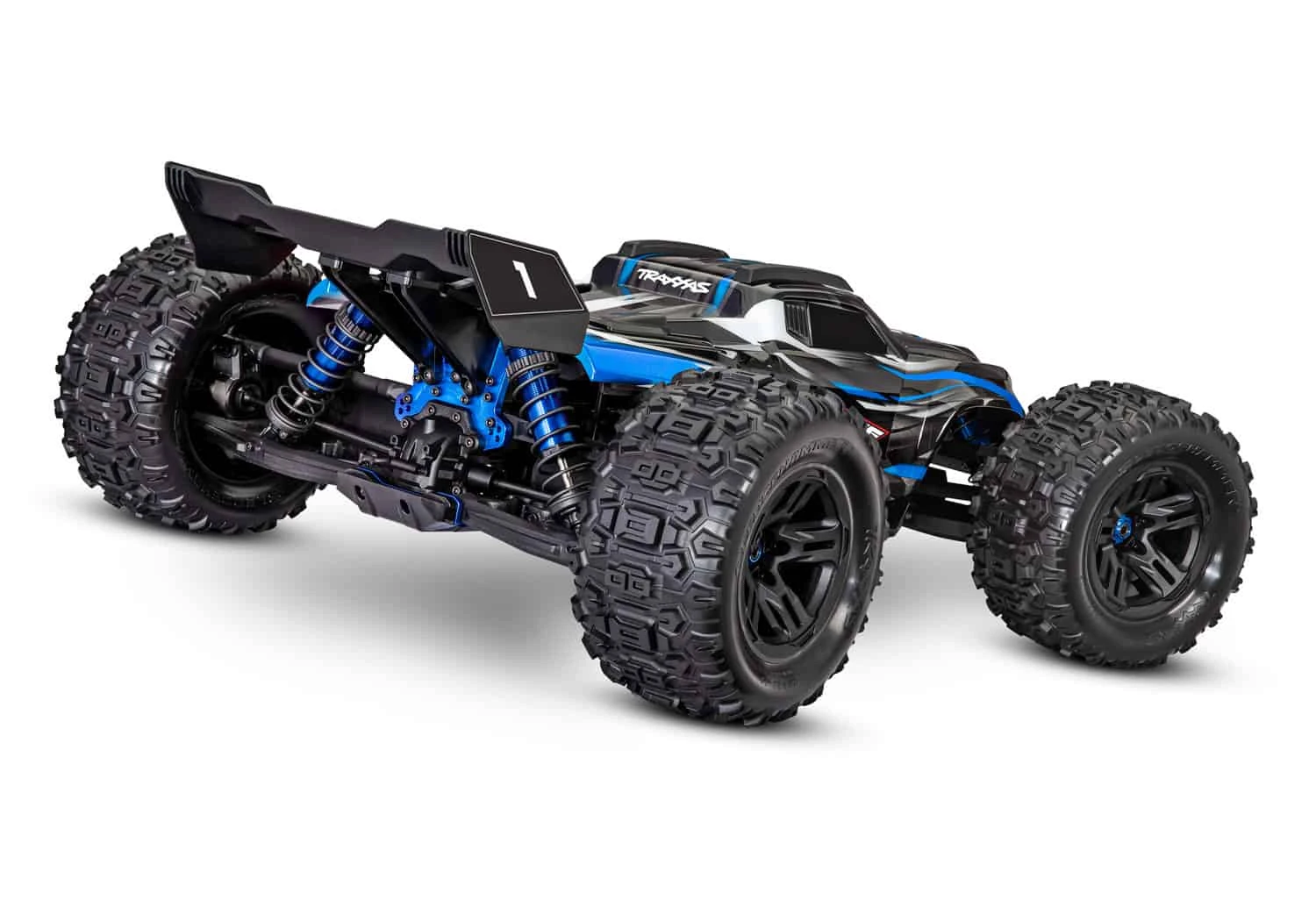

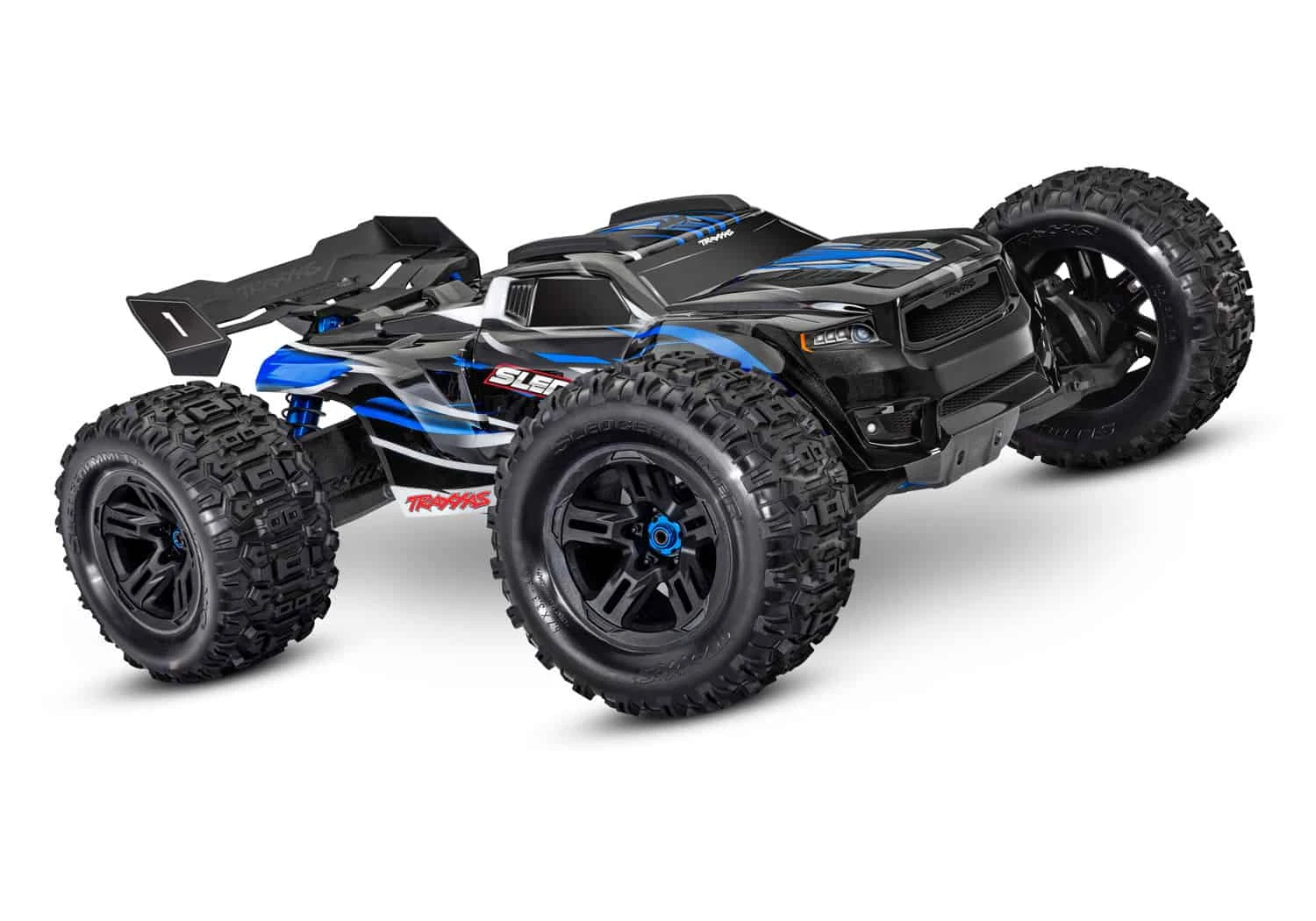

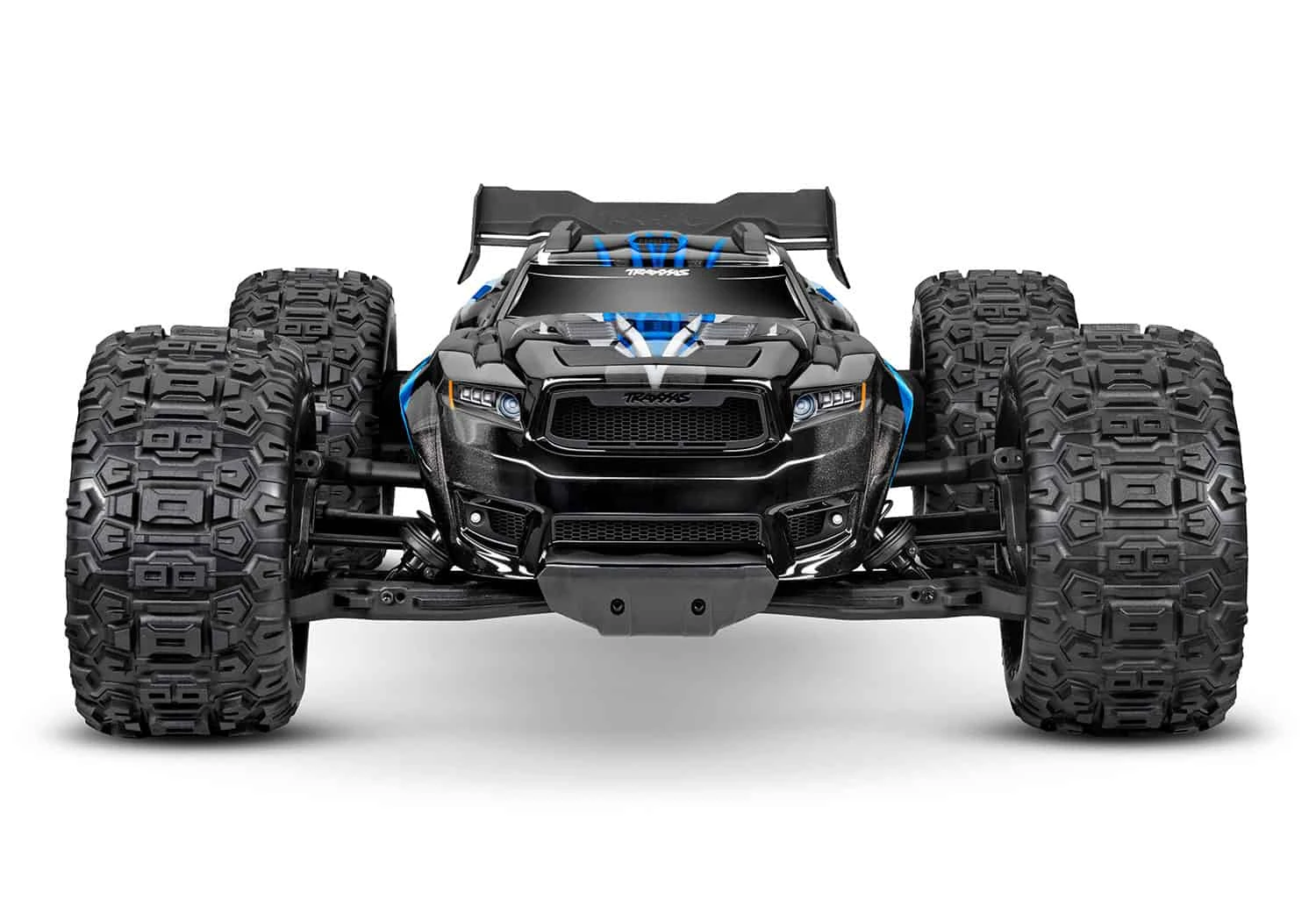

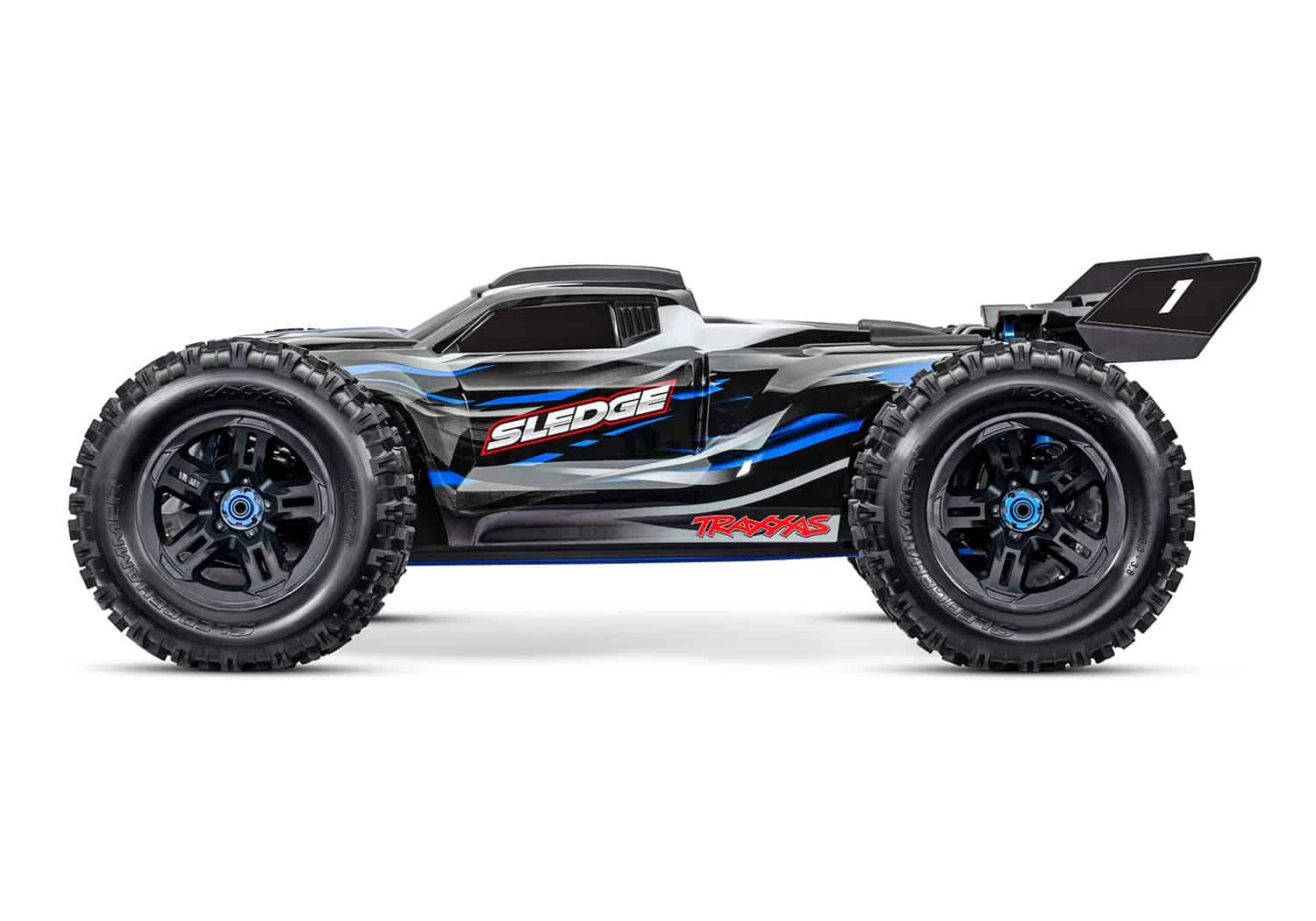

Traxxas Sledge 1/8 Scale 4WD Brushless Electric Monster Truck with TQi 2.4GHz Blue

Description



What’s In The Box:

• Sledge, Ready-To-Race^® monster truck with Traxxas 2000kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi^™ 2.4GHz radio system
• High quality maintenance tools
• Jumper plug (for 4s battery use)



What You’ll Need:

• LiPo Batteries

  Traxxas recommends dual 5000mAh 3-cell 11.1V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4V LiPo batteries or a single 6700mAh 14.8V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

• LiPo Balance Charger with iD^™

  Traxxas EZ-Peak^® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.



• VXL-6s Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors

• Velineon® 2000kV Brushless Motor

• 4-pole 2000kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Aluminum motor cradle mount
• Supports entire motor
• Reduces flex for longer gear life

• Up to 70+ mph with Two 3s LiPo Batteries
• Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

• TQi™ 2.4GHz High Output Radio System

• TQi™ 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

• Drivetrain

• Heavy-duty steel driveshafts
• Large 8mm steel stub axles
• Steel dogbone center driveline
• Protective rubber boots on differential inputs

• Transmission

• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive

• Differentials

• Heavy-duty sealed 4-gear design
• Large scale steel ring and pinion gears
• Oversize 8mm output shafts
• Steel drive cups
• Easy-access bulkheads

• Oil-filled GT-Maxx® Shocks

• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower cartridge with dual X-rings
• Height-adjustable spring retainer
• Lower spring perches bolted on

• Suspension

• Performance-optimized geometry
• Ultra-tough composite arms
• Made from our strongest cold-weather material
• Molded insert for clean look
• Rear rock deflectors
• Press-in hinge pins to reduce play
• Oversize molded toe and camber links
• Heavy-duty C-hubs
• Stronger than conventional designs
• Require no adjusments
• Multiple mounting points for suspension tuning

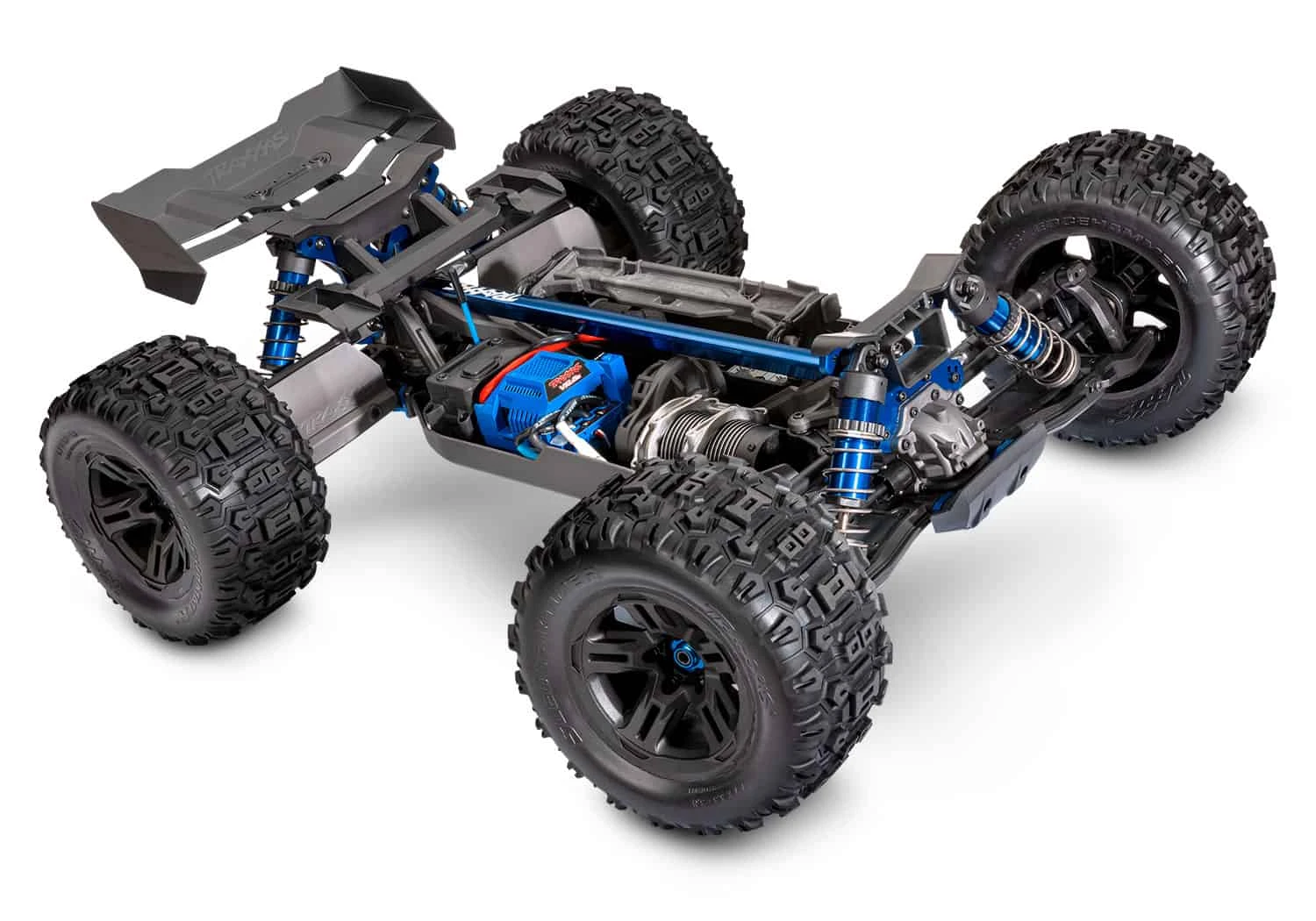

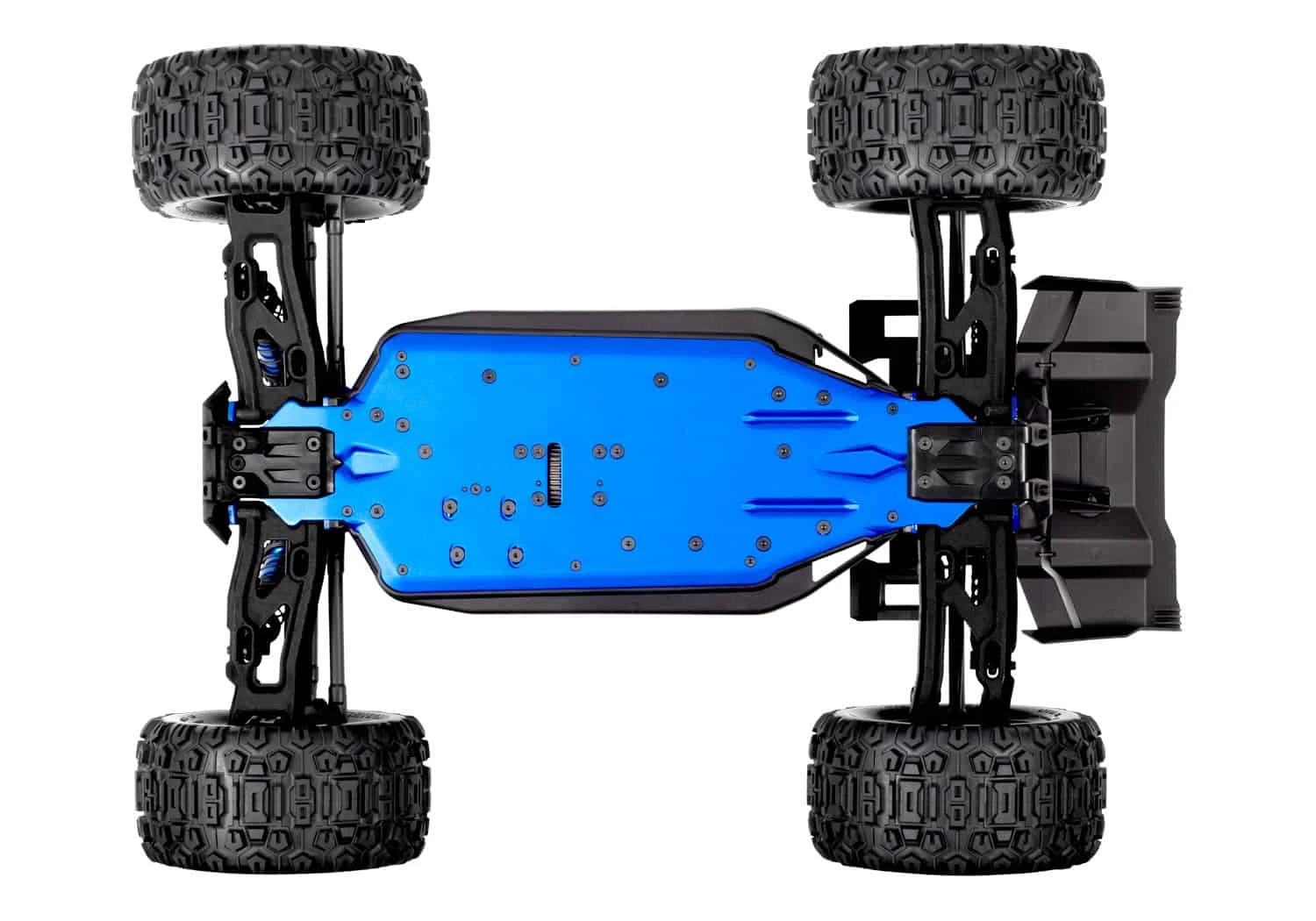

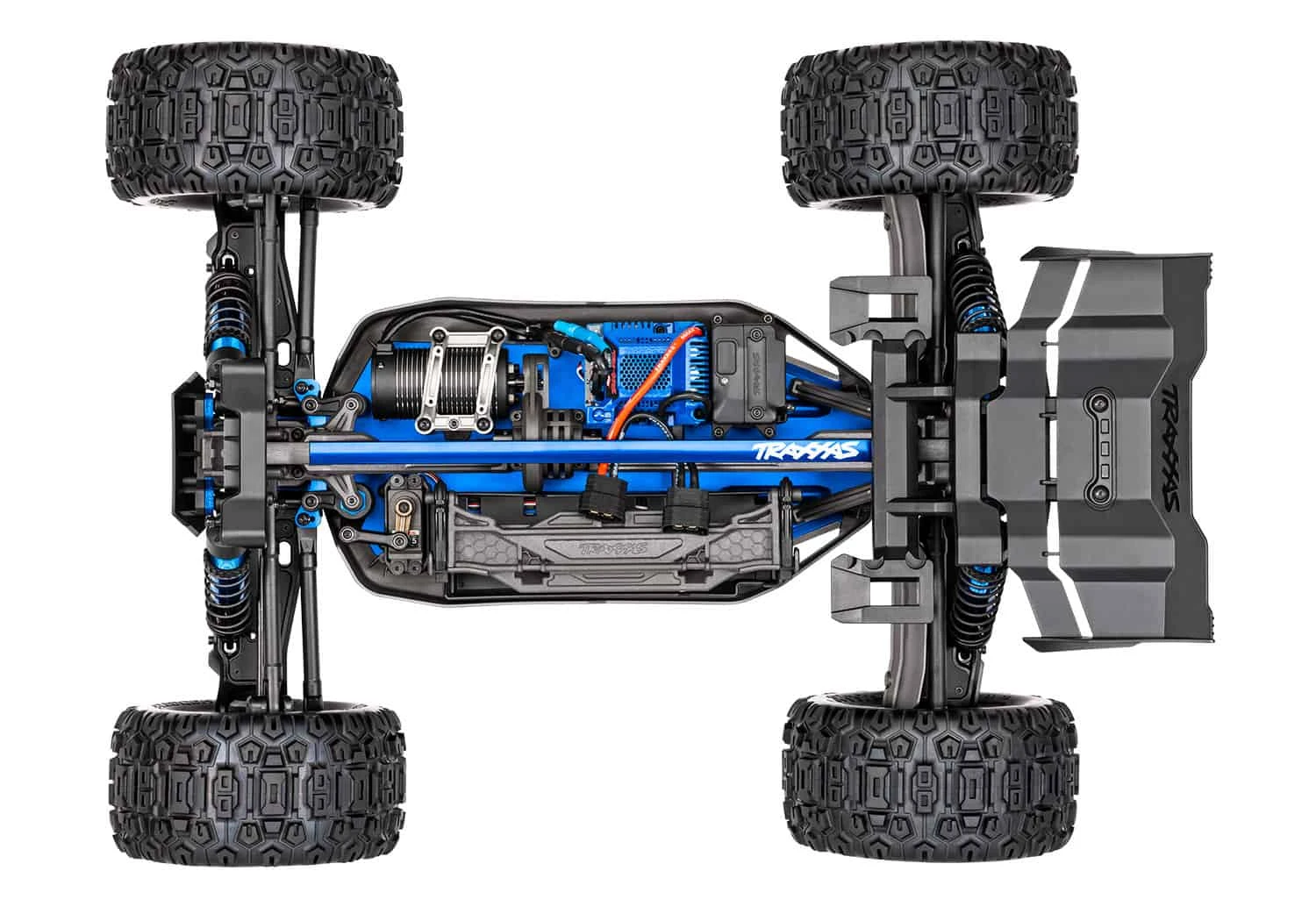

• Chassis

• 3.2mm ribbed aluminum chassis
• Formed edges for improved strength
• Thick T-Bar™ for added rigidity
• Stronger than round bars
• High-strength buttressing on shock towers
• Ultra-thick 5mm 6061-T6 aluminum shock towers
• Rugged locking battery compartment with quick-release door
• Low-CG design for improved handling
• Interlocking components for tight tolerances
• Tough front and rear bumpers double as skid plates
• Hidden wire management for clean appearance

• ProGraphix® Body

• Clipless body mounting system
• Rigid internal frame
• Molded body reinforcements for tear-through protection
• Protective roof skids
• Rugged high-downforce rear wing

• Wheels and Tires

• Huge 6.7” Sledgehammer® all-terrain tires
• TSM-rated construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm aluminum axle hubs

• Steering

• High-throw bellcrank steering design
• Heavy-duty servo saver with aluminum posts
• Metal servo horn
• Powerful #2275 metal gear servo
• 347 oz-in torque
• Fully waterproof

• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating



Specifications:

• Length (including wing):23.78 inches (604mm)
• Front Track:18.10 inches (459mm)
• Rear Track:18.10 inches (459mm)
• Ground Clearance:1.95 inches (50mm)
• Weight (no battery):12.74 pounds (5.77kgs)
• Height (overall): 8.43 inches (214mm)
• Wheelbase:15.10 inches (384mm)Shock
• Length (front):5.12 inches (128mm)Shock
•  Length (rear):5.67 inches (144mm)
• Tire Diameter:6.7 x 3.3 inches (170mm x 84mm)
• Wheel Diameter:3.8 inches (97mm)
• Speed Control:Velineon® VXL-6s (#3485)
• Motor (electric):Velineon® 2000kV Brushless
• Overall Drive Ratio:17.2 (13/52 motor pinion and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material:  3.2mm aluminum plate
• Brake Type:  Electronic
• Drive System:  Shaft-driven 4WD
• Steering: Double-shear bellcrank w/metal servo arm
• Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 6.7×3.8
• Radio System:   2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
• Servo:   2275 Waterproof, metal-gear (347oz-in torque)
• Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)
• Skill Level:  4
• Battery Tray:  Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
• Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
• Required Batteries:  4 “AA” (transmitter), Vehicle (see battery finder)
