Traxxas Slash 2WD Unassembled Kit: 1/10-scale 2WD Short Course Racing Truck



This Traxxas Slash 1/10 Electric 2WD Short Course Truck Kit gives you a dynamic take on the popular Slash, letting you build your own short-course truck from the ground up. A clear Slash body give drivers the option of customizing their own unique paint scheme.



Once built this lit includes the features divers have come to know in the RTR, with 4-wheel independent suspension to deliver a real-world driving experience. All the required parts and electronics are included in the box, with battery and charger sold separately. You’ll get a TQ 2.4GHz radio system, powerful Titan electric motor, and waterproof XL-5 electronic speed control. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building a low-stress exercise.

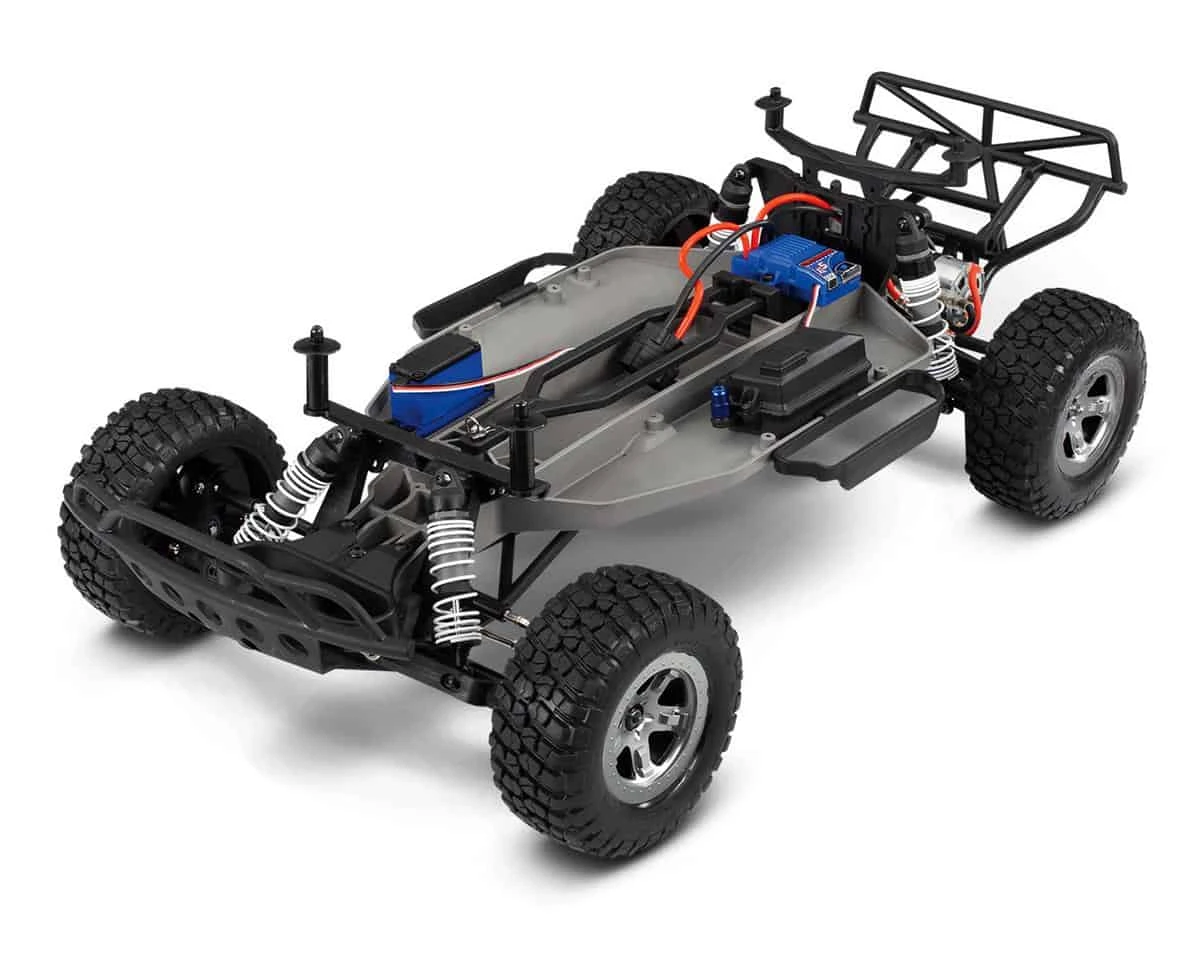

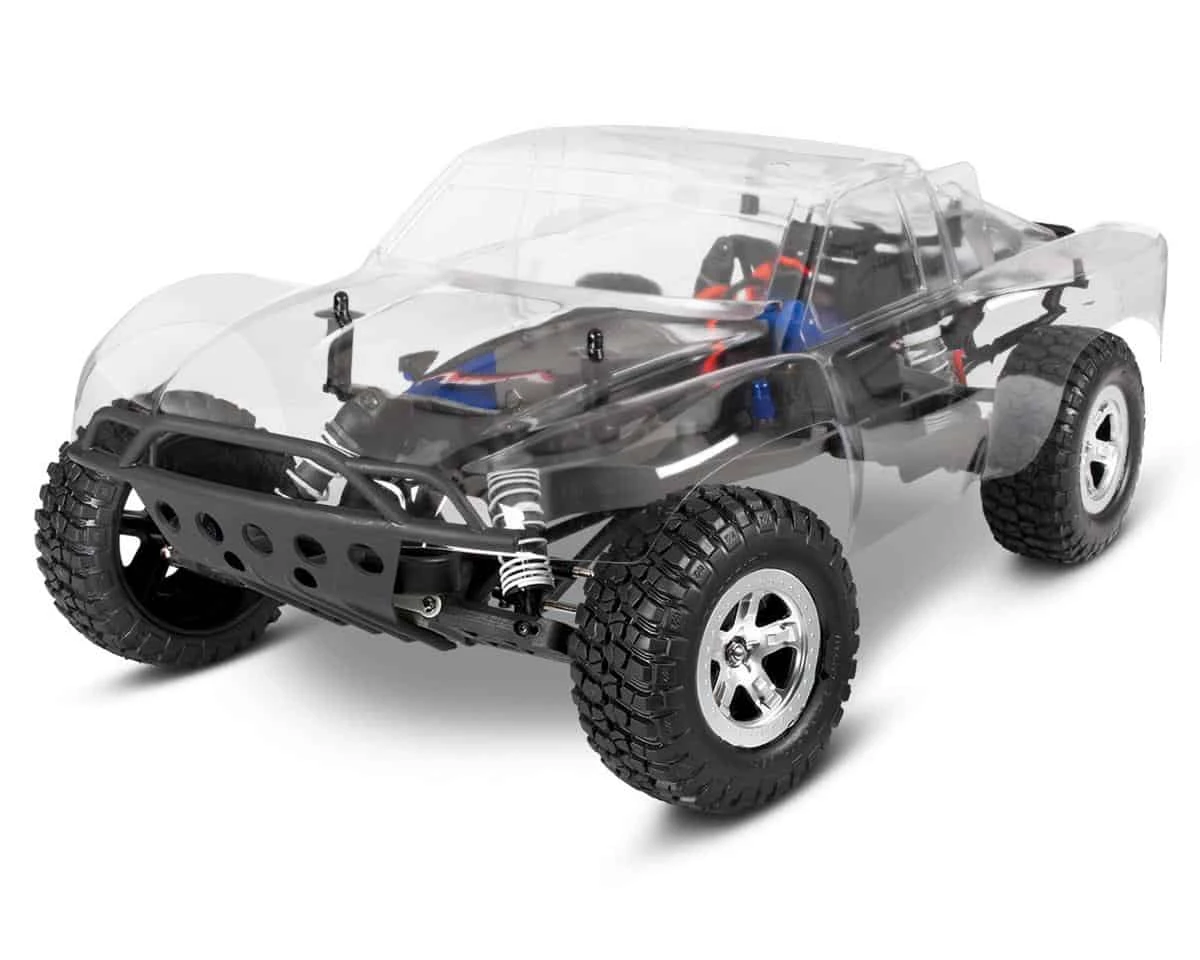

NOTE: Built kit shown in photos is for illustrative purposes only. This is a model that requires assembly and additional items to complete. See needed to complete list below for a list of items required to complete the model.



• Clear pre-cut body
  • Includes window masking, decals, and custom masking decals
• Scale dimensions and looks of actual short course off-road race trucks
• The Slash reaches speeds in excess of 30mph using the included optional 23-tooth pinion gear and accessory 7-cell Power Cell battery (sold separately)*
• Powerful Titan 12T 550 modified motor with internal cooling fan
• TQ 2.4GHz Radio System
• Race in dirt, mud, water, and snow thanks to Traxxas’ innovative water-sealed electronics
• XL-5 Waterproof Electronic Speed Control
  • Innovative water-sealed design
  • Forward/reverse/brake
  • EZ-Set push-button setup
  • Thermal shutdown protection
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • Three easy-to-program drive profiles
  • Equipped with Traxxas High-Current Connectors (patented)
  • Backed by the Traxxas Lifetime Electronics Warranty
• Digital high-torque waterproof steering servo
• O-ring sealed watertight receiver box keeps the micro receiver dry
• Long-wheelbase fiber-composite monocoque chassis
  • 13.2 inch wheelbase
  • Over 3.5-inches of ground clearance
• Easy access battery compartment
• Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs (sold separately)
• Chassis nerf bars absorb impact and support the body
• Scale front and rear tube-style bumpers
• Sturdy body mounts incorporate reinforced washers for additional body support
• Efficient Magnum 272 metal-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential with a steel ring gear
• Heavy-duty telescoping U-joint driveshafts and yokes
• Adjustable steel turnbuckles and captured rod ends
• Precision hex hardware throughout
• Efficient rubber-sealed ball bearings
• Fully adjustable Ultra Shocks with X-ring technology
• Progressive rate white powder coated shock springs with race-tuned responsive spring rate
• Licensed BFGoodrich Mud Terrain T/A tires for superior on- and off-road traction
• Includes performance foam inserts and satin chrome 5-spoke wheels



Length: 22.36 inches (568 mm)

Front Track: 11.65 inches (296 mm)

Rear Track: 11.65 inches (296 mm)

Weight: 76.2 ounces (2.16 kg)

Height (overall): 8.43 inches (214 mm)

Wheelbase: 13.2 inches (335 mm)

Front Shock Length: Long

Rear Shock Length: XX-Long

Front Tires: BFGoodrich Mud-Terrain T/A

Rear Tires: BFGoodrich Mud-Terrain T/A

Front Wheels: 2.2″ Satin-Finish

Rear Wheels: 2.2″ Satin-Finish

Speed Control Type: Waterproof XL-5 ESC with low-voltage detection

Motor (electric): Titan® 12T 550 (12-turn)

Gear Ratio (internal): 2.72 (final drive: 12.58)

Differential Type: Steel Composite Planetary

Gear Pitch: 48-Pitch

Transmission: Metal Gear Magnum 272™

Steering: Bellcrank

Chassis Type: Modified Tub

Chassis Material: Composite Nylon

Center Ground Clearance: 3.5 inches (89 mm)

Top Speed: 30+mph**

Skill Level: 1

Radio System: TQ™ 2.4GHz Radio System (2-channel)

*Battery Tray Dimensions: 165 mm x 49.5 mm x 23 mm, 25 mm

Required Batteries: 4 “AA” (transmitter), Traxxas Power

Cell Battery: (7-cell NiMH or 2-cell LiPo)



• Unassembled Slash 2WD chassis
• TQ™ 2.4GHz radio system
• Waterproof XL-5™ electronic speed control
• Titan® 12-Turn 550 motor
• Waterproof high-torque steering servo
• BFGoodrich Mud-Terrain T/A tires with foam inserts, mounted on satin chrome 5-spoke wheels
• Pre-cut clear Slash body with decals and window masking
• Includes custom masking decals for unique paint designs
• Full-color step-by-step assembly manual



• (1) 6-7 cell NiMH or 2-cell LiPo
• (1) Battery charger
• (4) AA Batteries (Transmitter)
• Polycarbonate Paint for body
