Arrma Kraton 4WD 1/5 EXB EXtreme Bash Roller Black

Description

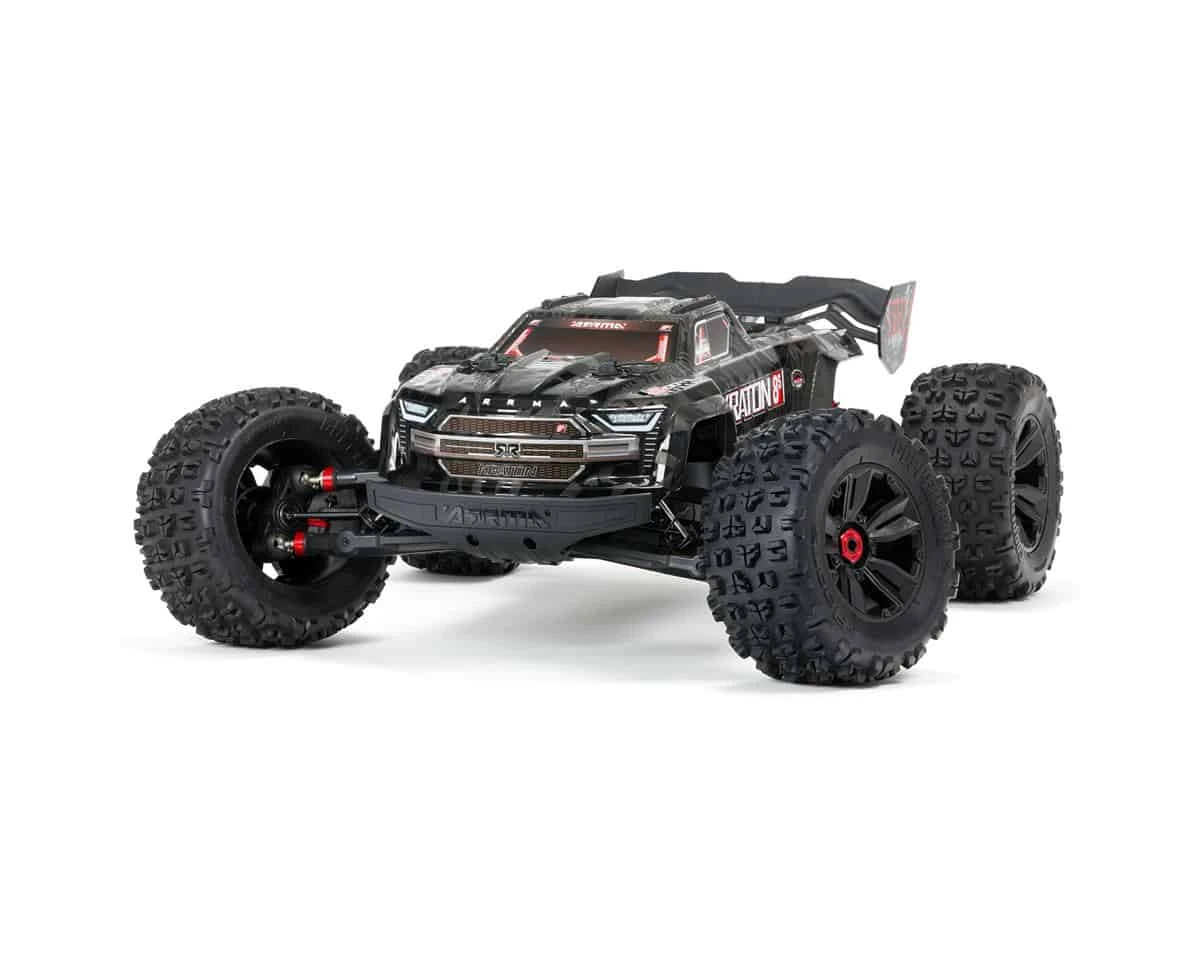

The ARRMA Kraton 1/5 EXB EXtreme Bash Roller Speed 4WD Monster Truck is tough where it counts, making this fully assembled chassis perfect for drivers that want to build a rig with the electronics they prefer. Numerous EXB-hardened parts and options give the KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength right out of the box. A 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and EXB front bumper with impact absorbing design combine to make a 1/5 monster that is ready for punishment. Topping it off is an exclusive EXB matte and gloss effect finished body for a truly unique look.



With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the KRATON 1/5 EXB blasts over dirt, asphalt, and grass — all terrain and all conditions. Beefy dBoots COPPERHEAD 2 big block tires on multi-spoke wheels with durable hubs claw into the surface and provide the grip needed for sure footed performance on any terrain. Everything in the durable design contributes to confident control and responsive handling at high speeds.



A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing.

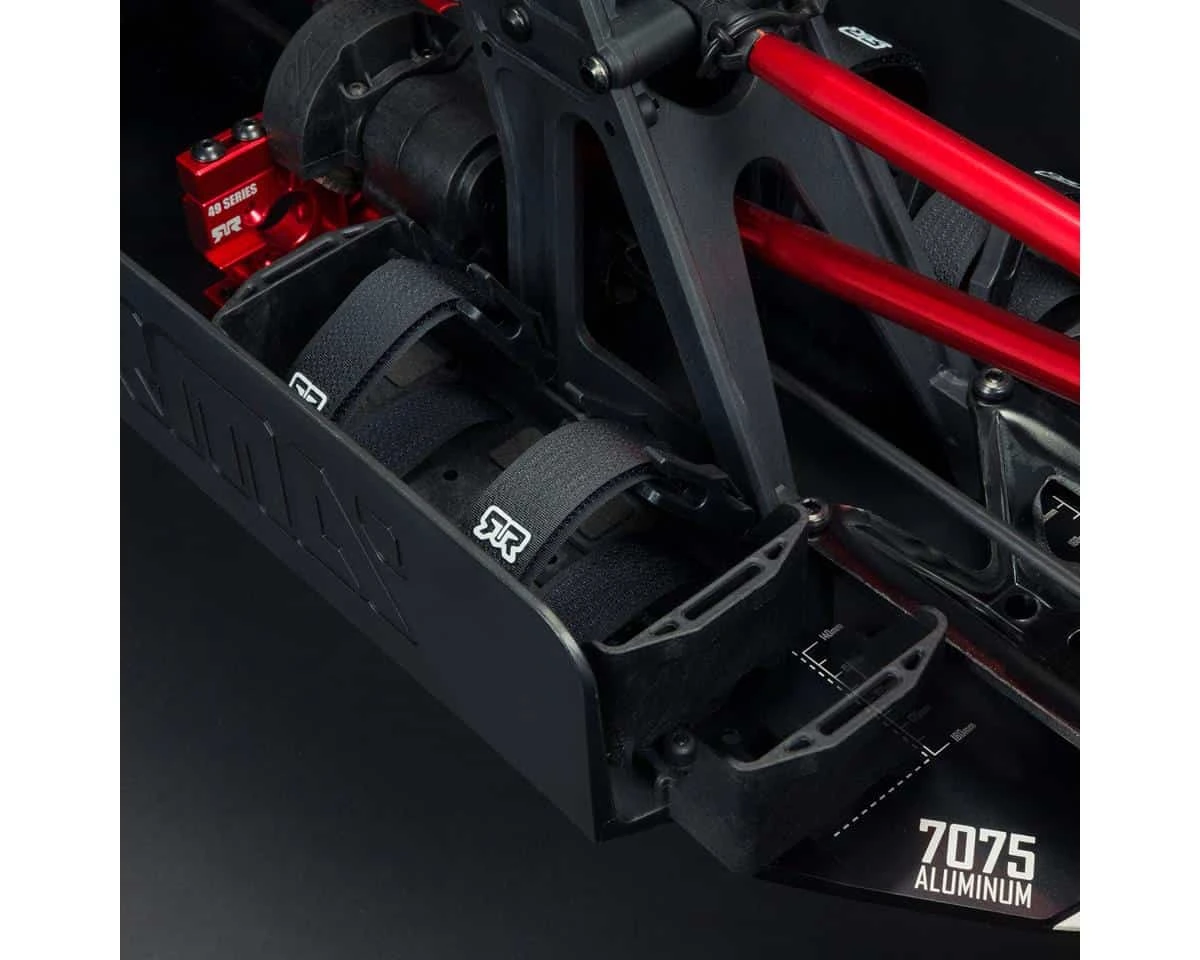

ARRMA also keeps your maintenance downtime to the minimum. The KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.





Features:

• Designed Fast, Designed Tough
• Add your choice of electronics to be as fast and powerful as you like
• Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box
• EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
• EXB Red-anodized CNC aluminum front brace mount
• EXB Front bumper with impact absorbing design

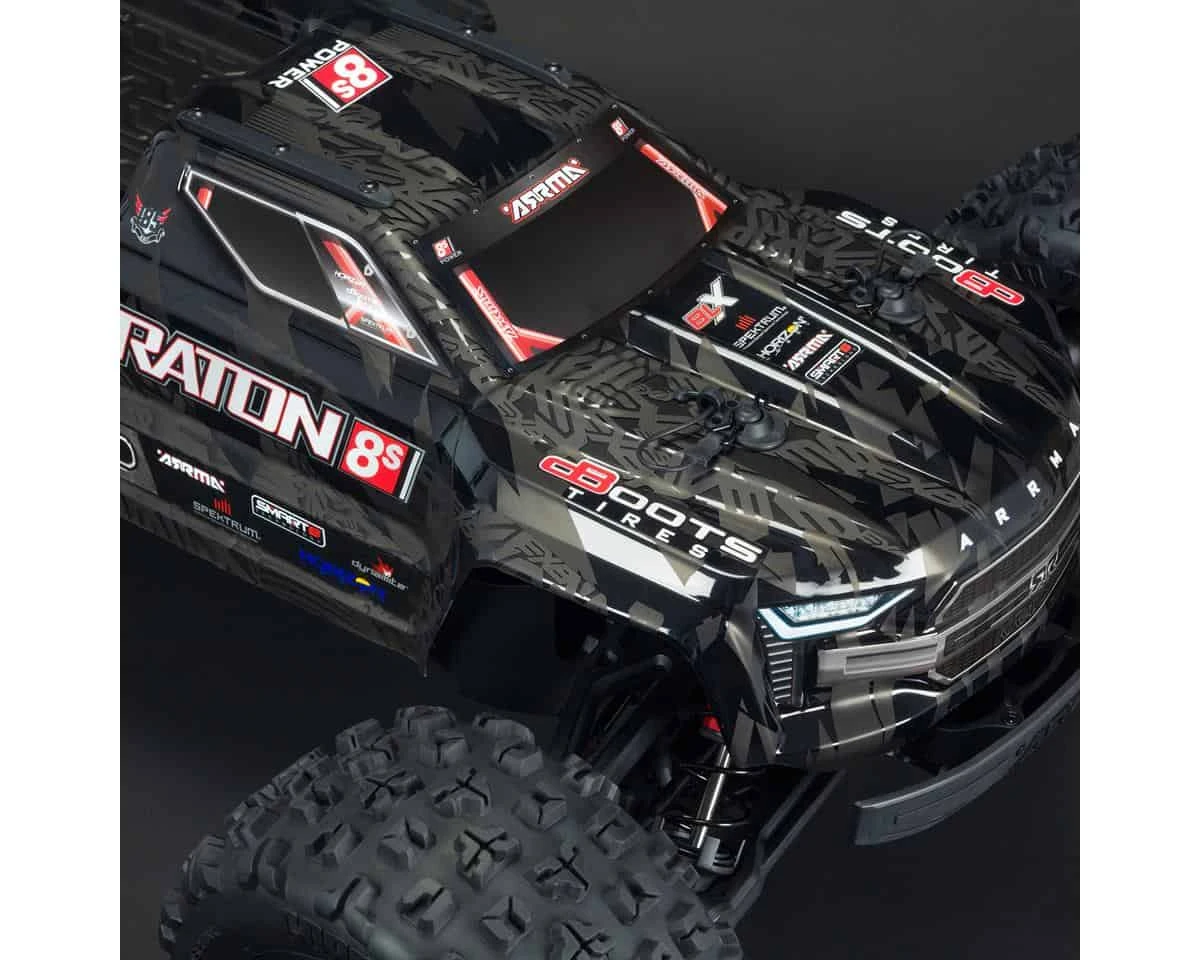

• Exclusive EXB matte and gloss effect body

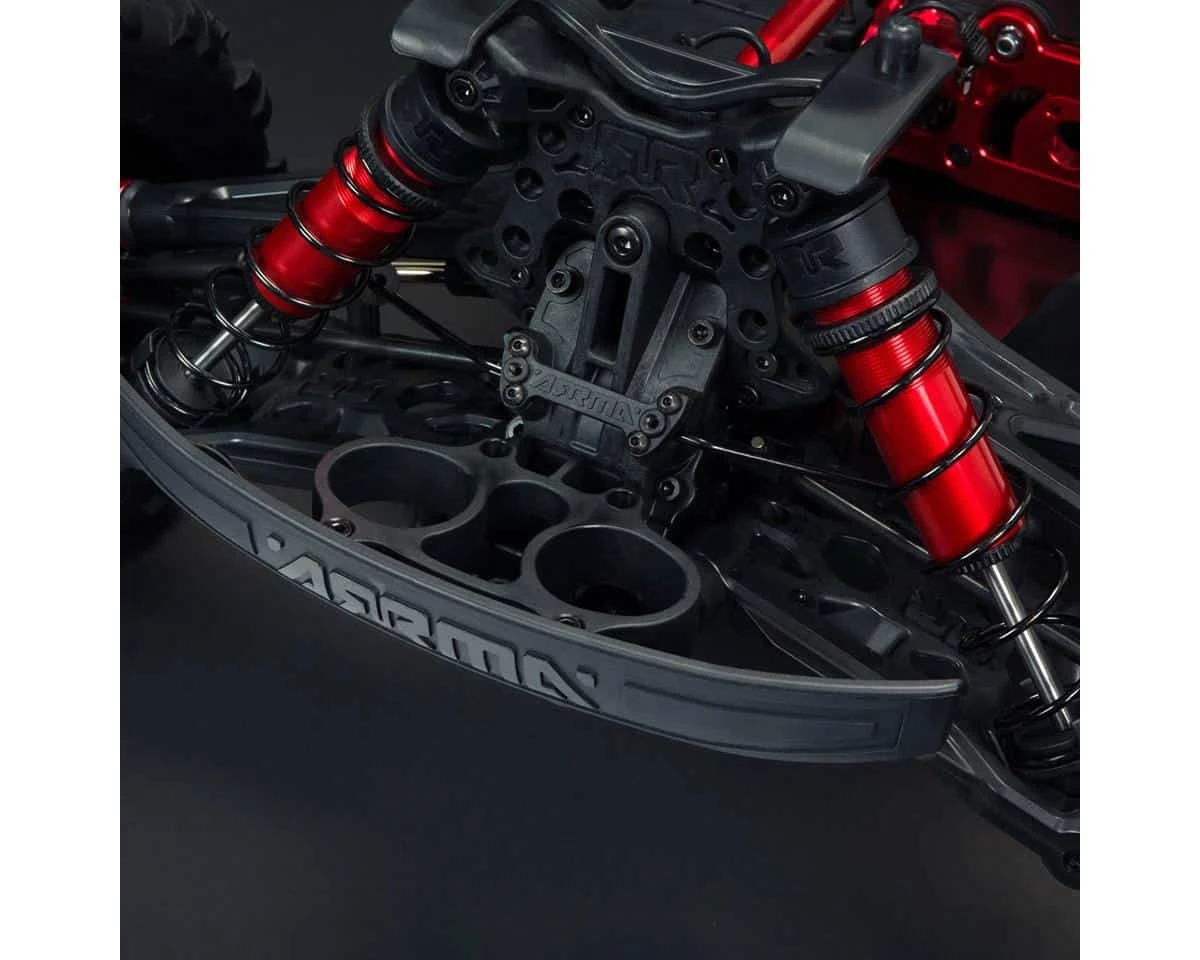

• Heavy-duty shocks with 6mm thick shock shafts and beefy shock rod ends

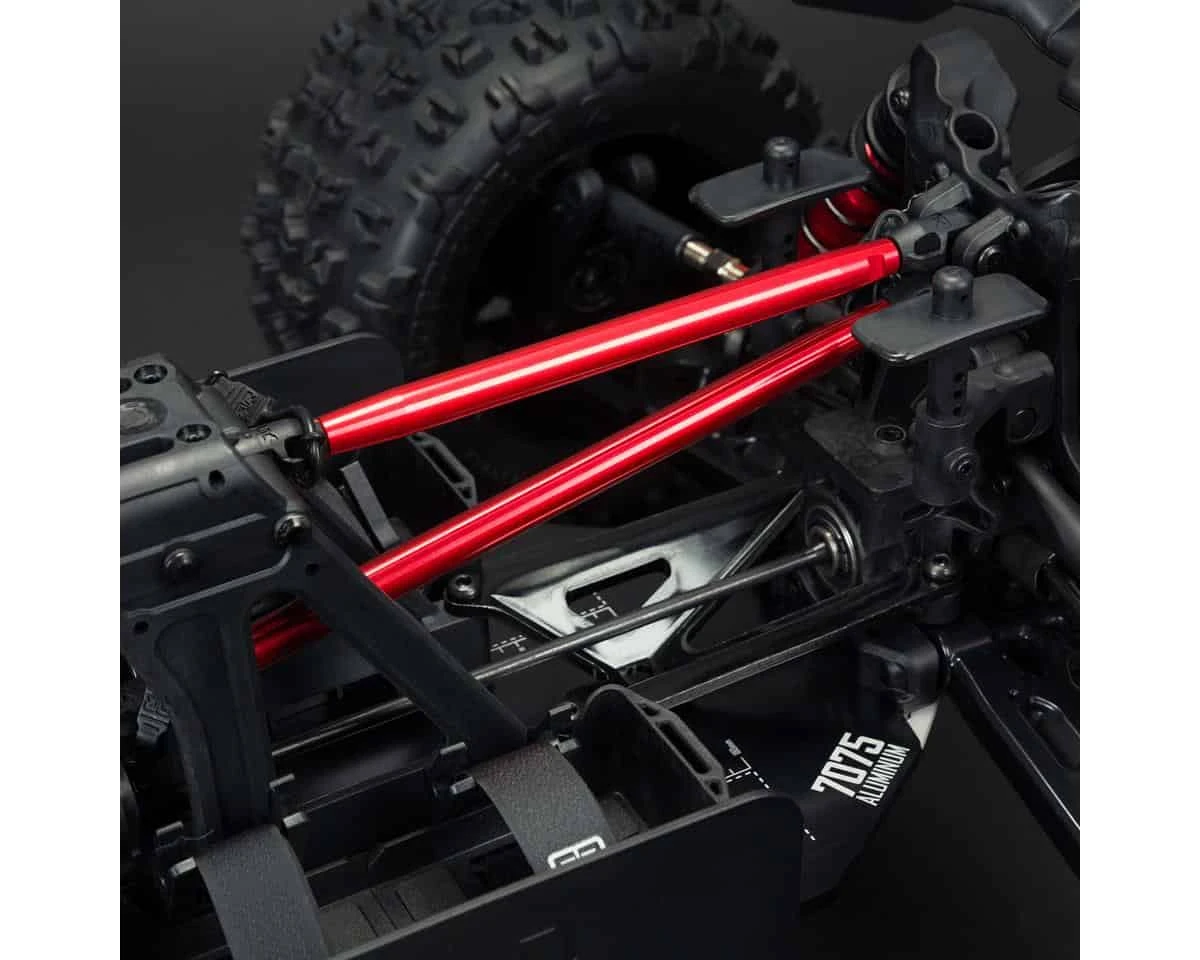

• Heavy-duty 7mm thick steering turnbuckles and 8mm thick rear suspension upper link turnbuckles with massive rod ends
• Heavy-duty COPPERHEAD 2 Big Block tires
• Black-anodized aluminum rear lower chassis brace
• Center body support and brace for maximum durability
• Strong composite chassis side pods
• Front and rear sway bars
• Red-anodized aluminum 49 and 56 series motor plates
• Easy-access front and rear diff module design
• 47T and optional 39T spur gear
• Servo mounts for 1/5 and 1/6 servos
• 15T and 17T servo saver adapters
• Heavy-duty servo saver springs



Specifications:
Approximate Assembly Time: 1 – 3 hours
Ball Bearings: Full set
Battery: Sold Separately
Body: Painted, trimmed and decaled
Brakes: Integral with ESC (ESC not included)
Charger: Sold Separately
Chassis: 0.196″ (5mm) Plate, 7075-T6 Aluminum
Completion Level: Kit
Differential: 3 differentials, gear type design
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 9.1 – 28.4
Front Track: 23.7″ (602mm)
Power Type: Electric
Gear Pitch: 1.0 MOD
Internal Gear Ratio: 9.06
Product Height: 11.1″ (282 mm)
Product Length: 30.35″ (771 mm)
Product Weight: 23.32 lb (10.6kg)
Product Width: 23.7″ (602 mm)
Radio: Sold Separately
Rear Track: 23.7″ (602mm)
Receiver: Sold Separately
Scale: 1/5
Servos: Sold Separately
Shock Type: Oil-filled, coil-over springs
Speed Control: Sold Separately
Spur Gear: 47T and 39T included
Suspension: Independent
Vehicle Type: Monster Truck
Water-Resistant: Yes
Wheelbase: 19.33″ (491 mm)



Includes:

• (1) ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck
• (1) Optional 39T Spur Gear
• (1) Red-Anodized Aluminum 49 and 56 Series Motor Plates
• (1) Mounts for 1/5 and 1/6 Servos
• (1) Adapters for 15T and 17T Servo Splines
• (1) Product Manual



Needed to Complete:

• Motor
• Electronic Speed Control
• Radio System
• Steering Servo
• Batteries
• Charger
