Arrma Big Rock 4X4 3S BLX Brushless 1/10th 4wd MT Black



The Arrma Big Rock 4X4 V3 3S BLX 1/10 RTR Brushless Monster Truck delivers a thrilling combination of ARRMA toughness, street truck style and 50+ mph speed capability. Built on the powerful 4X4 BLX platform, its precision aluminum, tough steel and composite materials come together for an easy-to-maintain, super-durable vehicle design that’s now been upgraded to further increase the monster truck’s impressive performance and durability.



Built for exciting bashing speeds and extreme, all-terrain durability, the Big Rock 4×4 V3 includes features that enhance its unstoppable performance. A stronger chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; longer suspension arms for a 1.10 inch increase in width; and rubber-shielded bearings throughout are now included to take your bashing session to the next level.



It also now includes a Spektrum SLT3 transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free bashing and has a foam wheel for precise fingertip control, plus an improved hand grip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3 is compatible with Tactic SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

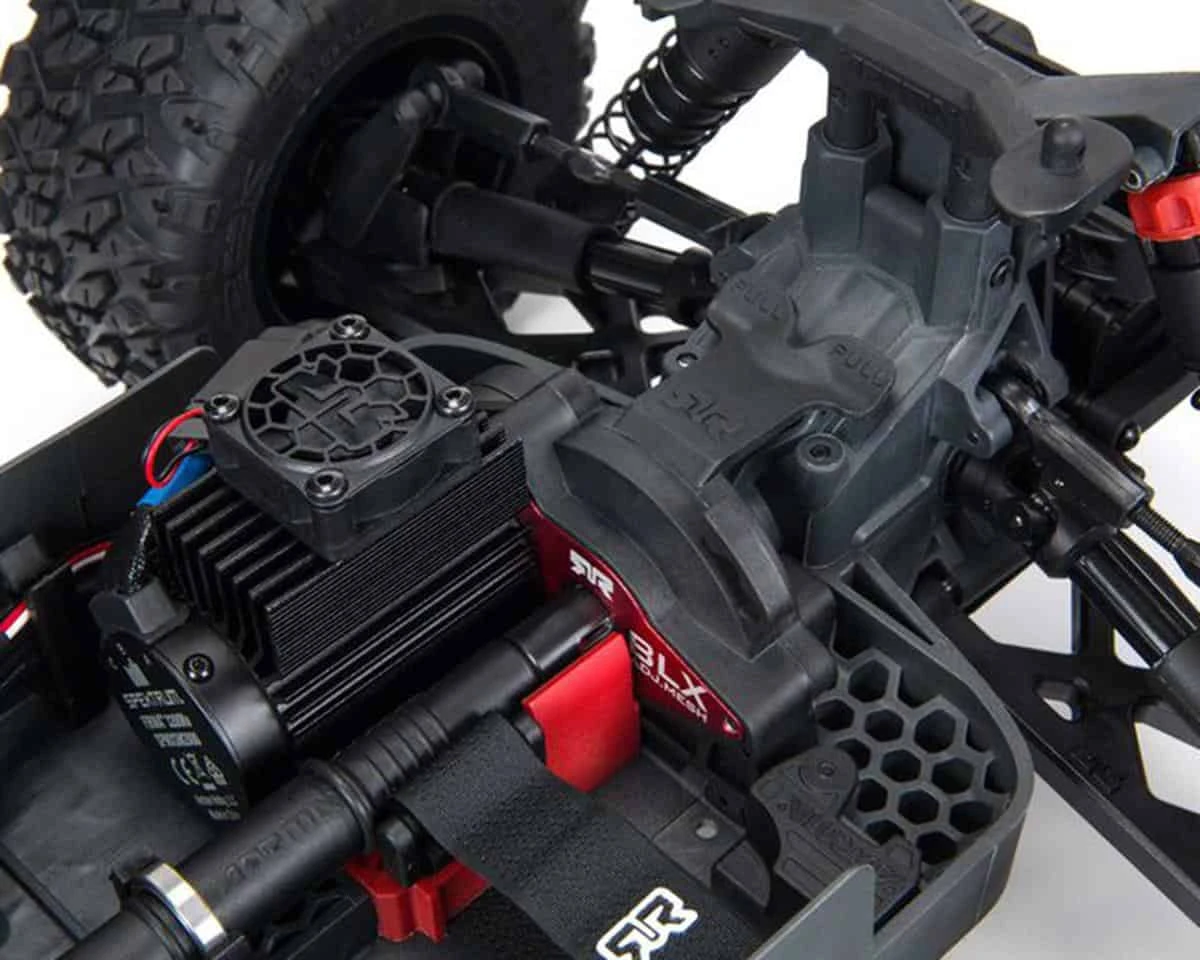

ARRMA now powers the BIG ROCK 4X4 3S BLX with a brushless system featuring its BLX100 ESC and the Spektrum Firma 3200Kv brushless motor. The combination provides incredible torque, acceleration and speed. The transmission and chassis are ruggedly engineered to take full advantage of the power.



Its full-time 4WD transmission uses strong front, rear, and centerline telescopic driveshafts that can’t be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The BIG ROCK 4X4 3S BLX RTR includes the waterproof Spektrum SPMS651 metal-geared digital servo for 15% more torque than the previous ADS-7M servo.





• Spektrum™ Firma™ 3660 3200Kv brushless motor with Safe D pinion and ARRMA® heatsink and cooling fan
• Stronger chassis and retained hinge pin plates
• Steering with more clearance for stones
• Castellated slipper pad and sliding gear mesh
• 1.1 inch wider stance for better handling and bashing
• Plastic locknut for slipper
• 23T Spline servo saver
• 37T 1.35Mod diffs with silicone O-rings
• Power Module with sliding gear mesh and improved dirt management
• Rubber shielded bearings throughout
• Oil-filled shocks with silicone O-rings
• Wider arms front and rear
• Body with matte black finish
• Front and rear bumpers with matte black finish
• Tough black multi-spoke wheels with matte black finish
• Vented multi-terrain dBoots® RAGNAROK™ tires
• BLX100 2S/3S waterproof ESC (For details on waterproof standards, refer to the instruction manual)
• IC5™ connectors (EC5™) compatible
• Signature easy-access modular design
  • Easy-access power module
  • Easy-access electronics module
  • Easy-access diff module removal front and rear
• Double wishbone suspension front and rear
• Metal-geared differentials
• Adjustable ride height
• Adjustable body mounts
• Adjustable turnbuckles
• High-speed center driveshaft support
• Wheelie Bar
• 2-year limited warranty (see website for details)
• 50+ MPH (80+ km/h) speed achievable in optimum driving conditions on 3S LiPo

Ball Bearings: Full Ball Bearing Drivetrain

Battery: Sold Separately

Body: Painted, decaled and trimmed

Charger: Sold Separately

Chassis: Molded Composite

Completion Level: Ready-To-Run

Differential: 2 Gear Diffs

Drivetrain: 4WD

Final Drive Ratio: 10.83

Front Track: 14.02 in (356mm)

Power Type: Electric

Gear Pitch: 0.8MOD

Ground Clearance: 2.17 in (55mm)

Internal Gear Ratio: 2.85

Motor Type: Brushless – Sensorless

Pinion: 15T

Product Height: 7.91″ (201 mm)

Product Length: 20.24″ (514 mm)

Product Weight: 6.25lbs (2835g)

Product Width: 14.02″ (356 mm)

Radio: Included

Rear Track: 14.02 in (356mm)

Receiver: Included

Scale: 1/10

Servos: Included

Shock Type: Oil-Filled, Coil-Over Springs

Speed Control: Included

Spur Gear: 57T

Suspension: Independent

Vehicle Type: Monster Truck

Water-Resistant: Yes

Wheelbase: 12.87 in (327mm)



• (1) ARRMA BIG ROCK 4X4 3S BLX 1/10 Scale 4WD Electric Monster Truck RTR
• (1) BLX100 2S/3S Waterproof ESC
• (1) Spektrum Firma 3660 3200Kv Brushless Motor
• (1) Spektrum 2.4GHz SLT3 3-Channel Transmitter
• (1) Spektrum SLR300 Receiver
• (1) Spektrum SPMS651 Waterproof Metal-Geared Digital Servo
• (1) Product Manual

• 2S LiPo or 3S Hardcase LiPo Battery
• Compatible Charger
• LiPo Safe Charging Bag
• (4) AA Batteries
