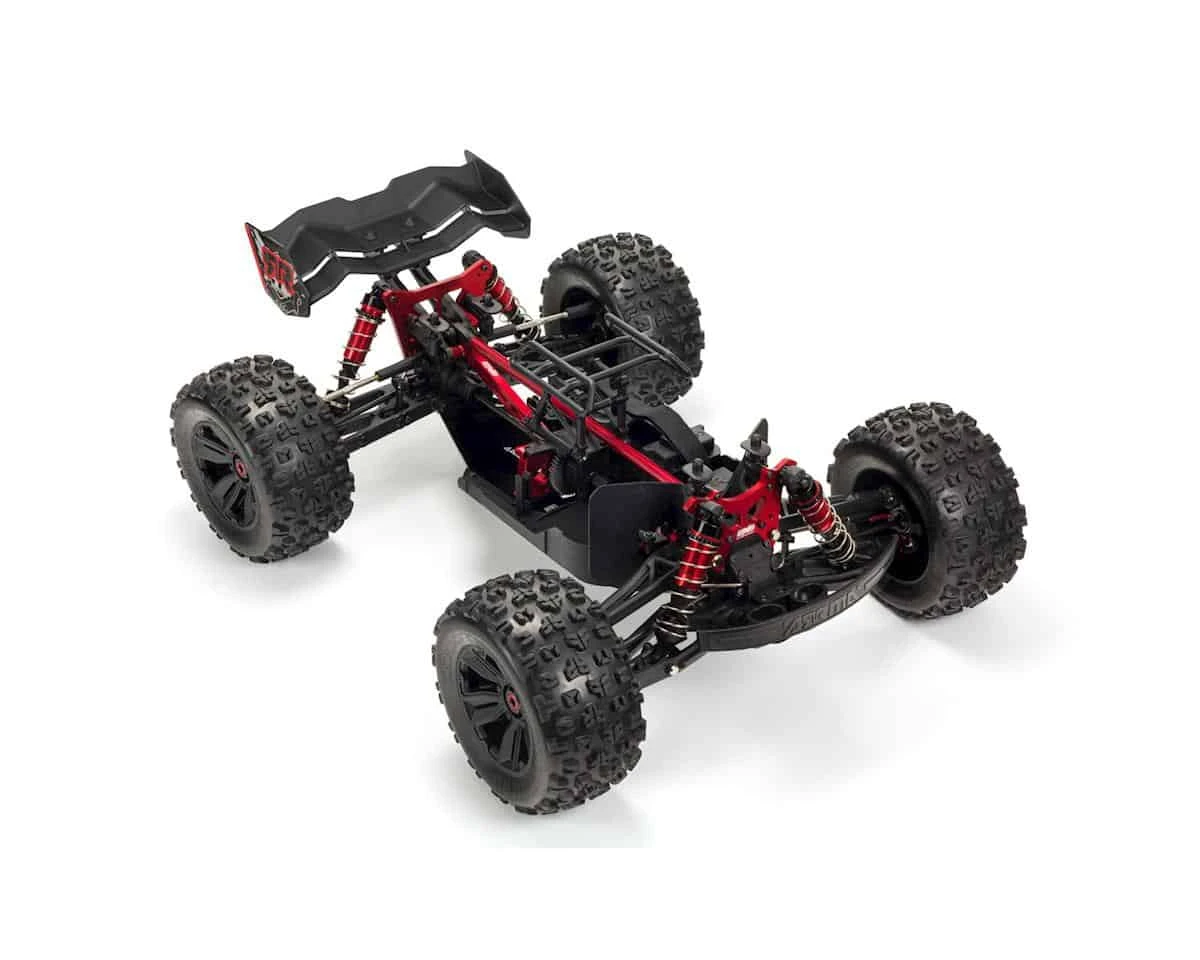

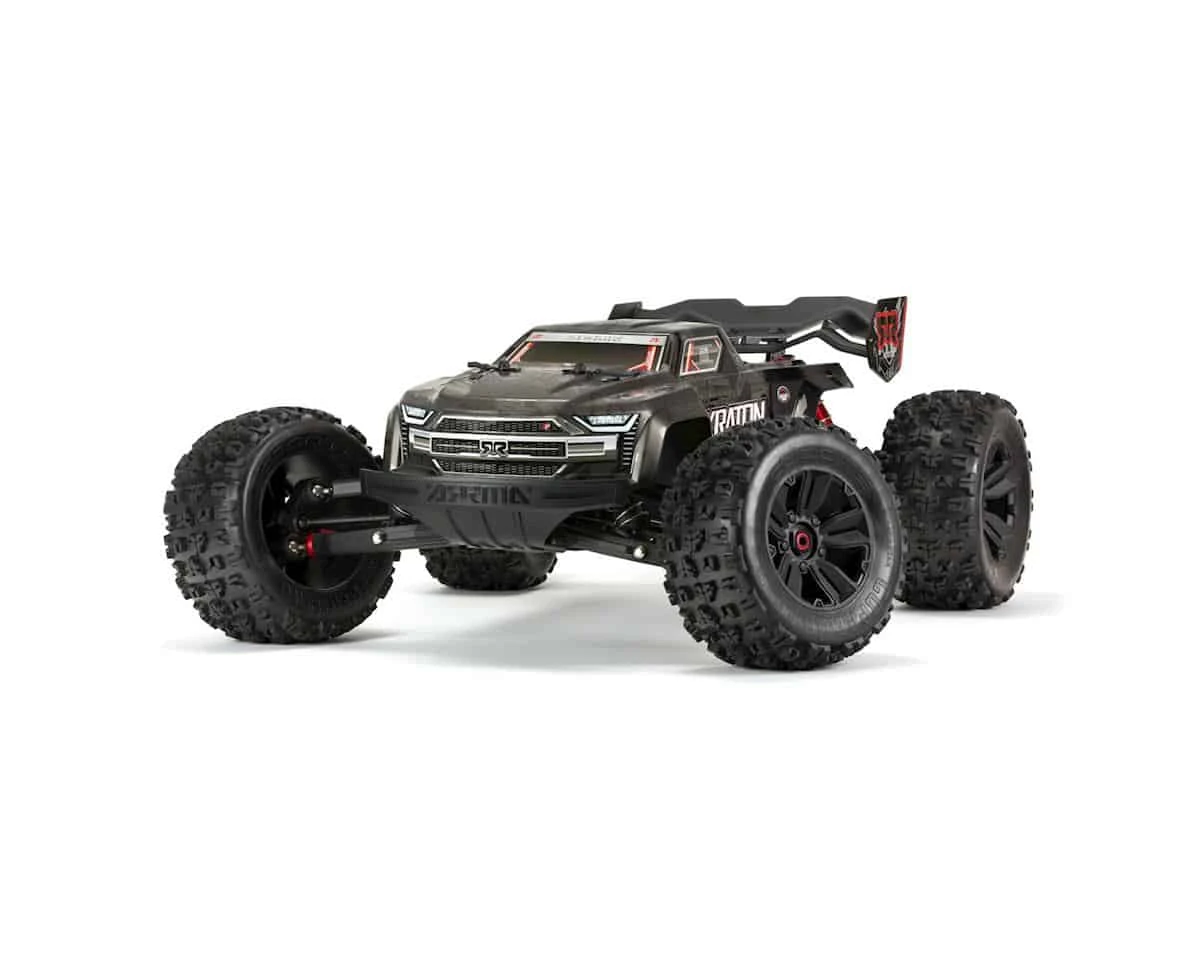

Arrma 1/8 Kraton 4WD EXB Extreme Bash Roller Speed Black



The ARRMA Kraton 1/8 EXtreme Bash Roller 4WD Monster Truck is a rolling chassis kit that adds extra toughness everywhere it counts. This 1/8 scale chassis is the perfect platform for high-speed bashing over brutal terrain. It’s fully assembled and ready to accept your choice of powerful electronics. Top off the KRATON Extreme Bash Roller Speed Monster Truck with the included, exclusive EXB matte and gloss finish body — and you’re ready to bash without boundaries.



“Designed Fast, Designed Tough” may be an understatement when describing the KRATON Extreme Bash Roller Speed Monster Truck. Made of strong anodized 7075 T6 aluminum, the laser-etched chassis plate gains further rigidity from the use of front and rear aluminum chassis braces. Strong composite chassis side pods and a center body support and brace provide more rugged resilience.



Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An Extreme Bash toughened suspension system smooths the ride, with a steel rear suspension mount and adjustable oil-filled shocks mounted on 7075 T6 anodized aluminum front and rear shock towers.



The KRATON™ Extreme Bash Roller Speed Monster Truck’s list of EXB components also includes the following — and more — to give this big machine uncompromising muscle:

• EXB Heavy-duty front and rear arms with aluminum strengthening cap
• EXB Heavy-duty steel turnbuckles
• EXB Heavy-duty front upper steel hinge pins
• EXB Plated limited-slip differentials
• EXB Red-anodized aluminum servo mount
• EXB Large volume waterproof receiver box
• EXB Front bumper



Features:

• Designed Fast, Designed Tough
• EXB (Extreme Bash) components for extreme durability
• 7075 T6 Aluminum laser-etched chassis plate
• Aluminum front and rear chassis braces
• Center body support and brace for maximum durability
• Strong composite chassis side pods
• Aluminum front upper hanger, top plate, and rear suspension mount
• Heavy-duty front and rear arms with aluminum strengthening cap
• Heavy-duty steel turnbuckles
• Heavy-duty front upper steel hinge pins
• Heavy-duty drivetrain
• Durable steel driveshafts
• All-metal diff outdrives and gearbox internals
• Plated limited-slip differentials
• Safe-D input gears
• Oil-filled adjustable shocks
• 7075 T6 Anodized aluminum front and rear shock towers
• Red-anodized aluminum servo mount
• Large volume waterproof receiver box
• Black matte and gloss effect body
• Front bumper
• High downforce wing
• Multi-terrain DBoots® Copperhead™ 2 tires on multi-split spoke wheels
• Durable wheel hubs
• 2-year warranty (see website support for details)



Approximate Assembly Time: 1-3 Hours

Ball Bearings: Yes, full set

Batteries: One 3S at least 5000mAh recommended

Body: Painted, decaled and trimmed

Brakes: Integral with ESC

Bushing Material: Metal

Charger: Sold separately

Chassis: CNC 7075-T6 Aluminum plate, 0.12″ (3mm) thick

Differential: Three oil-filled metal gear

Drivetrain: 4WD

Final Drive Ratio: 17.92

Gear Pitch: 1.0 Module

Height: 7.68 in (195mm)

Length: 23.39 in (594mm)

Max Battery Dimensions: 7.08×2.16×2.75in (180x55x70mm)

Motor Size: 4074, sold separately

Motor Type: Brushless, sold separately

Pinion: 12T

Radio: Sold separately

Scale: 1/8

Servos: Sold separately

Shock Type: Adjustable, oil-filled, coil-over springs

Speed Control: Sold separately

Spur Gear: 50T

Suspension: Independent

Tire Diameter: 6.65 in (169mm)

Tire Tread: dBoots COPPERHEAD2

Vehicle Type: Monster truck

Water-Resistant: Yes

Weight: 9.35 lb (4.25kg)

Wheel Hex Size: 17mm

Wheel Type: Monster truck

Wheelbase: 14.84 in (377mm)

Width: 18.15 in (461mm)





• (1) ARRMA® KRATON™ 1/8 Scale Extreme Bash Roller Speed Monster Truck 4WD
• (1) Product Manual



• Transmitter and Receiver
• Steering Servo
• Electronic Speed Controller
• Motor
• 3S-6S LiPo Battery
